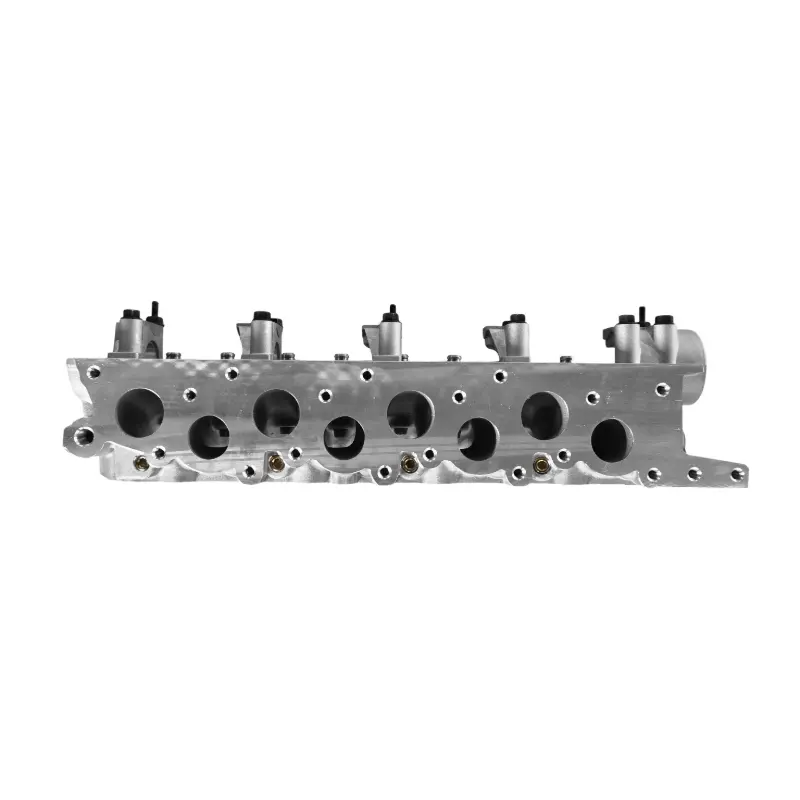

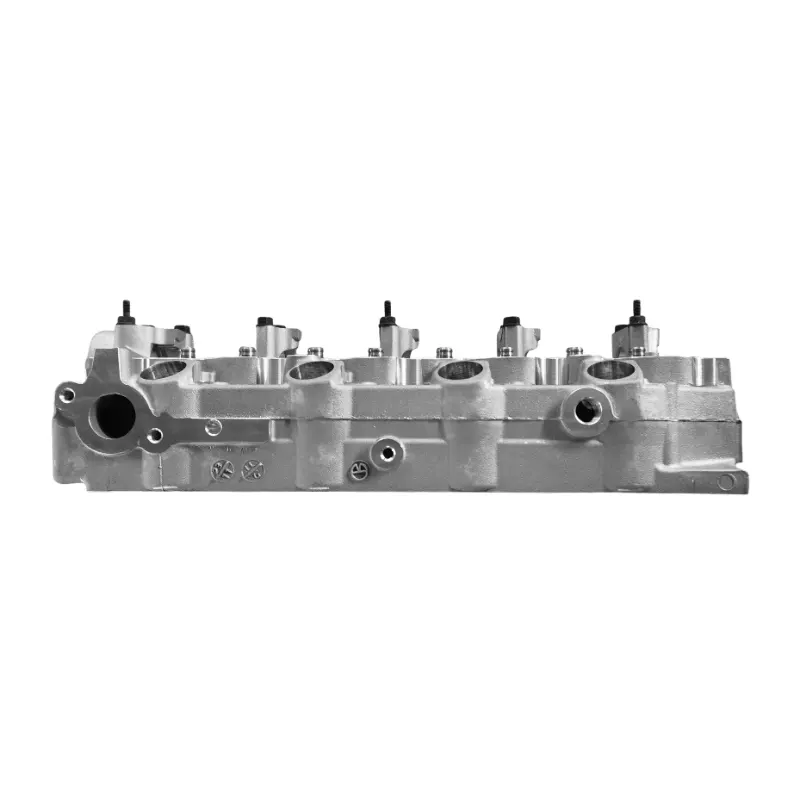

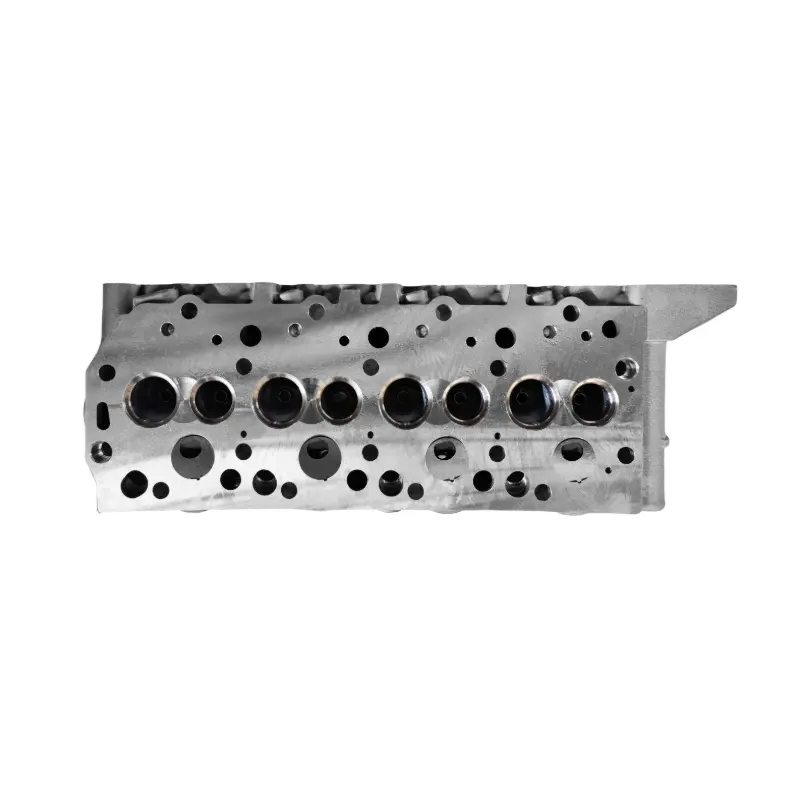

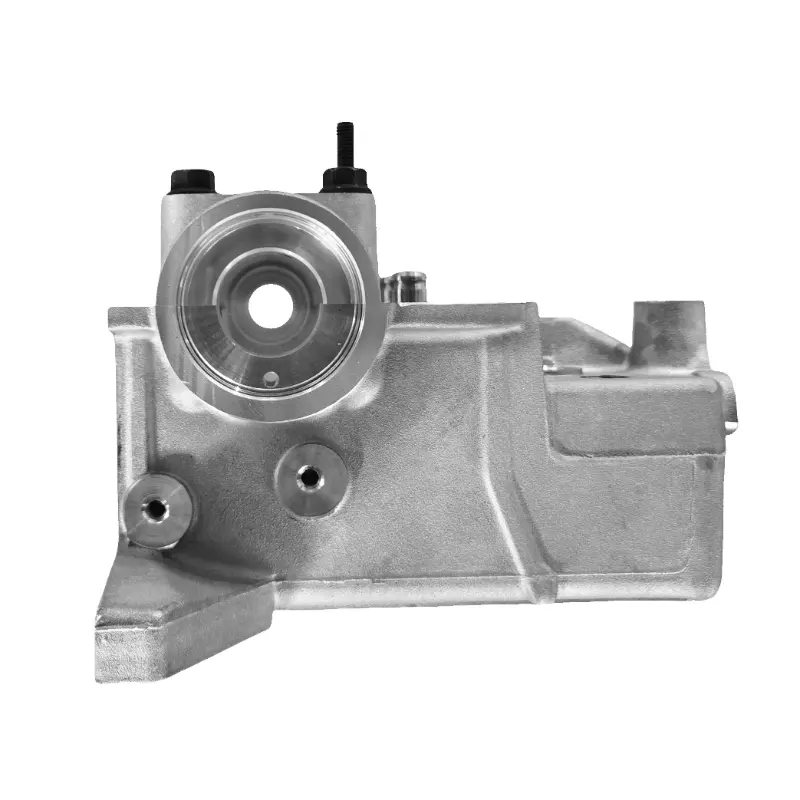

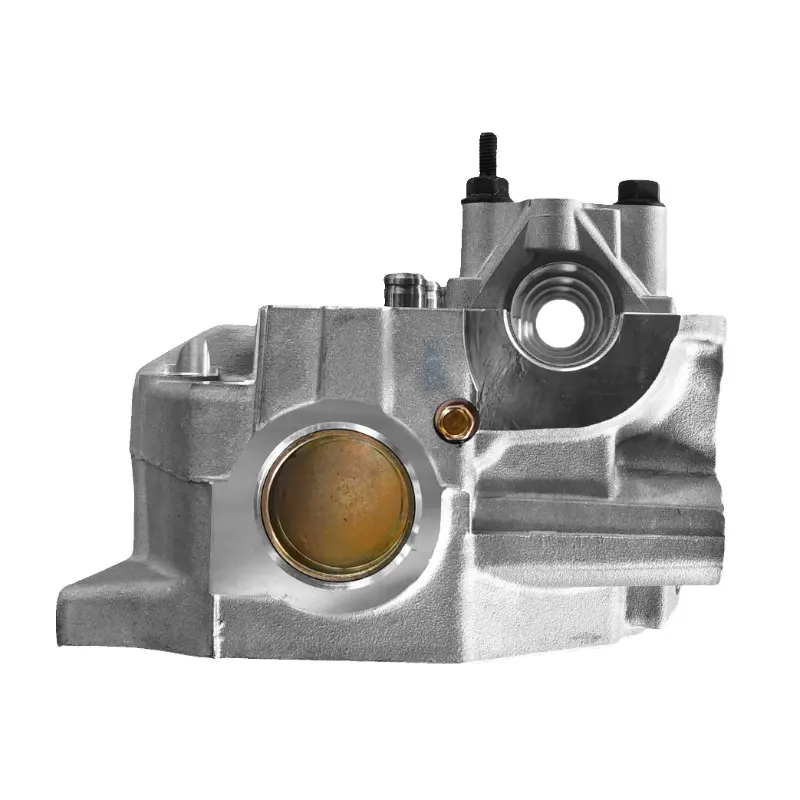

1. Material: Typically made of aluminum alloy, which offers high heat resistance and corrosion resistance. The use of aluminum alloy helps reduce engine weight and improves heat dissipation.
2. Structural Design:
DOHC (Dual Overhead Camshaft) design: The 4D56 engine cylinder head features a dual overhead camshaft (DOHC) configuration, which helps improve valve timing precision and engine performance, especially at high RPM, by enhancing airflow efficiency.
Valve Configuration: Typically a 4-valve design, with 2 intake valves and 2 exhaust valves per cylinder. This configuration better controls the intake and exhaust processes, improving engine combustion efficiency and power output.
3. Cooling System: The cooling channels in the cylinder head are connected to the engine’s water-cooling system, ensuring the engine’s heat is effectively dissipated to prevent overheating and damage. These cooling channels are usually designed as a complex network to ensure that all parts are adequately cooled.
4. Turbocharging and Exhaust Design: As the 4D56 is a turbocharged diesel engine, the cylinder head will have specially designed passages for the turbocharger and exhaust systems to improve exhaust efficiency and reduce turbo lag.
5. Valve Seats and Valves:
Valve Seat Material: The valve seats are typically made from hardened cast iron or insertedmaterials to ensure a good seal and wear resistance, extending the engine’s lifespan.
Valve Material: The valves are usually made of high-strength steel and are likely treated with high-temperature processing to withstand the high-pressure and high-heat working environment.
6. Cylinder Head Gasket: To ensure internal engine air and liquid sealing, the cylinder head is typically fitted with a multi-layered steel (MLS) gasket, which maintains its sealing performance under high temperature and pressure.
7. Common Issues:
Cylinder Head Cracks: Due to high thermal loads, some 4D56 engines may experience cracks in the cylinder head, especially when there are issues with the cooling system or insufficient coolant.
Valve Wear: Prolonged high-intensity use can lead to valve and valve seat wear, affecting sealing and engine performance.
Cylinder Head Removal, Installation, and Maintenance
Check Sealing: Regularly check the cylinder head gasket to ensure there are no leaks.
Clean Air Passages: Clean the intake and exhaust passages in the cylinder head to prevent carbon buildup and contaminants that can affect airflow.
Check Valve Clearances: Regularly check valve clearances to ensure proper opening and closing of the valves.
Common Cylinder Head Failures and Repairs
Leaks (Water/Oil): Failure of the gasket or cylinder head cracks may lead to coolant or oil leakage, and in severe cases, the cylinder head may need to be replaced.
Cylinder Head Warping: Long-term high-temperature operation can cause cylinder head warping, which can affect engine performance and may require resurfacing or replacement.
Information about the 4D56 Engine
1.Engine Type:
Configuration: Inline 4-cylinder
Fuel Type: Diesel
Cooling System: Water-cooled
2. Engine Specifications:
Displacement: 2.5L (2,477cc)
Bore x Stroke: 84mm x 90mm
Compression Ratio: Typically around 23.0:1
Fuel System: Mechanical or Electronic Fuel Injection (varies by model and market)
Turbocharging: Yes, turbocharged (single-stage)
Intercooling: Common in some versions of the 4D56 engine for better performance
Valve Configuration: 8 valves (4 valves per cylinder) with DOHC (Dual Overhead Camshaft) in some versions
3. Performance:
Max Power: Approximately 85-115 horsepower (63-85 kW), depending on the specific version and application
Max Torque: Ranges from 200Nm to 300Nm, depending on the version
Fuel Efficiency: Known for fuel efficiency in its category, especially in commercial vehicles and off-road applications
4. Applications:
The 4D56 engine is commonly used in Mitsubishi Pajero, L200, Outlander (in some regions), and Canter trucks, as well as in various Mitsubishi commercial and off-road vehicles.
It is used in light commercial vehicles and SUVs, primarily for markets requiring durability, high torque, and fuel economy in demanding environments.
5. Features:
Durability: The 4D56 is known for its robust design, which allows it to perform well under heavy-duty and off-road conditions.
Turbocharged: The turbocharged version provides extra power and better performance, especially for high-load applications such as towing or off-road driving.
Emission Standards: Some versions of the 4D56 comply with modern emissions standards, making them suitable for a wide range of markets.
6. Common Issues:
Head Gasket Failure: In some versions of the 4D56, the head gasket may fail over time, especially if the engine overheats or is improperly maintained.
Fuel Injection Problems: Mechanical fuel injectors (VE pumps) can experience wear or clogging, which may lead to performance issues such as rough idling or excessive smoke.
Turbocharger Wear: On turbocharged variants, the turbocharger can wear out if proper maintenance, such as regular oil changes and air filter replacements, is not performed.
7. Maintenance Considerations:
Regular maintenance, including oil changes, fuel filter replacement, and cooling system checks, is essential for ensuring the longevity of the engine.
Cooling system: Ensuring the cooling system is functioning properly to avoid overheating and potential cylinder head damage.
Turbocharger: Regular inspections of the turbo system and ensuring proper lubrication are important to prevent turbo failure.
8. Common Parts for Replacement:
Cylinder Head: Known for wear over time, especially if the engine has experienced overheating.
Fuel Injectors: Commonly replaced in older versions of the engine that may have fuel delivery issues.
Timing Belt: Regular replacement to avoid engine damage.
Turbocharger: In the turbocharged versions, the turbocharger may need servicing or replacement after extended use.
