Motor aplicable:
D4HA / D4HB
Marca aplicable:
KIA / HYUNDAI
Vehículo aplicable:
SANTA FE / TUCSON / LX 35 / SORENTO
Parámetros del producto:
| Desplazamiento | Combustible | Cilindro | Valle | Árbol de levas | Año |
| 2.0/2.2 |
Diesel
|
4 | 16 | 2 | 2010- |
Culata

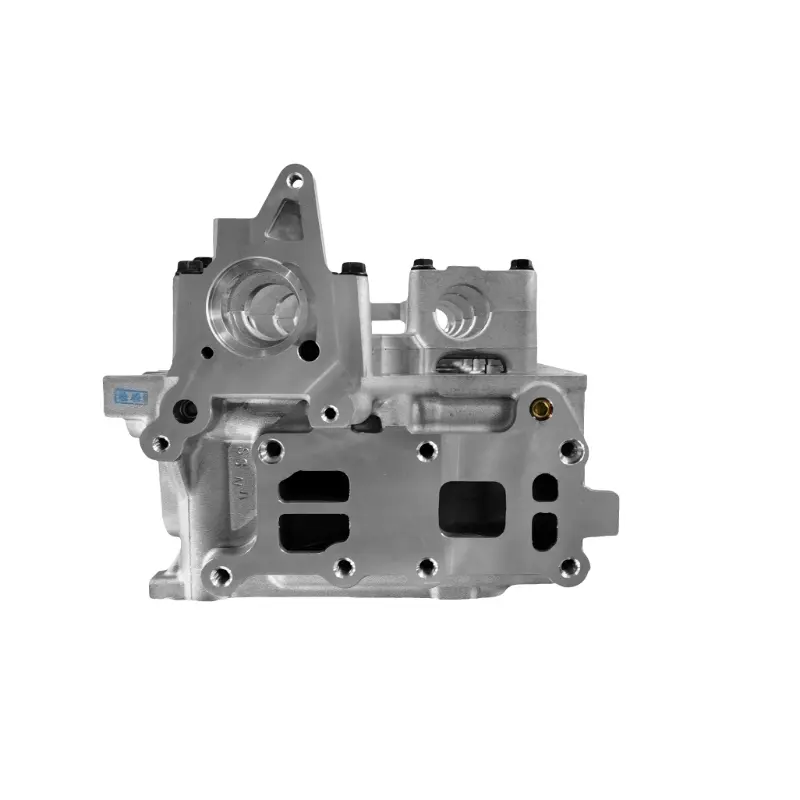

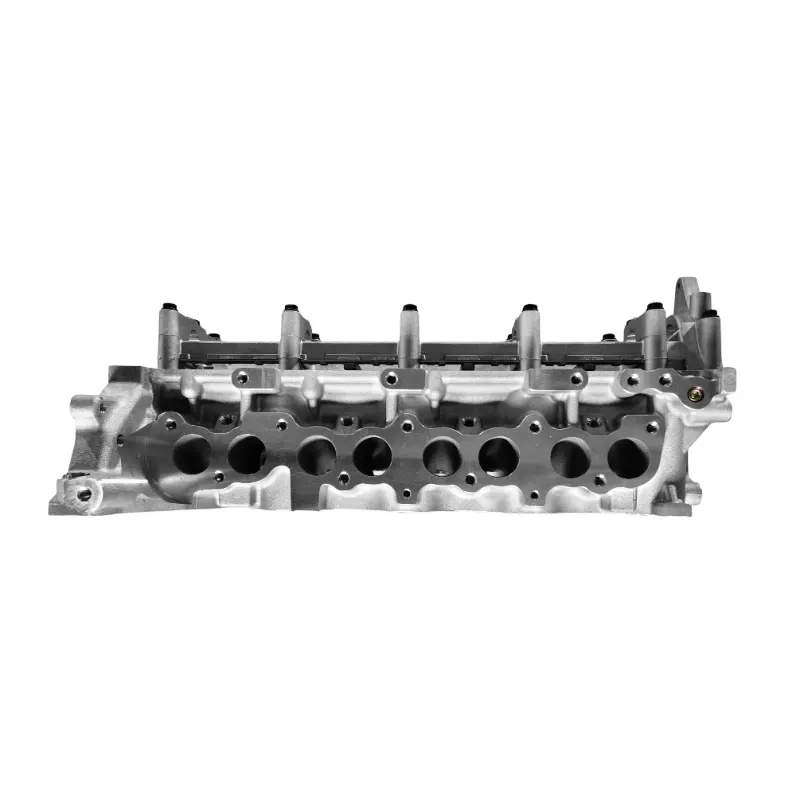

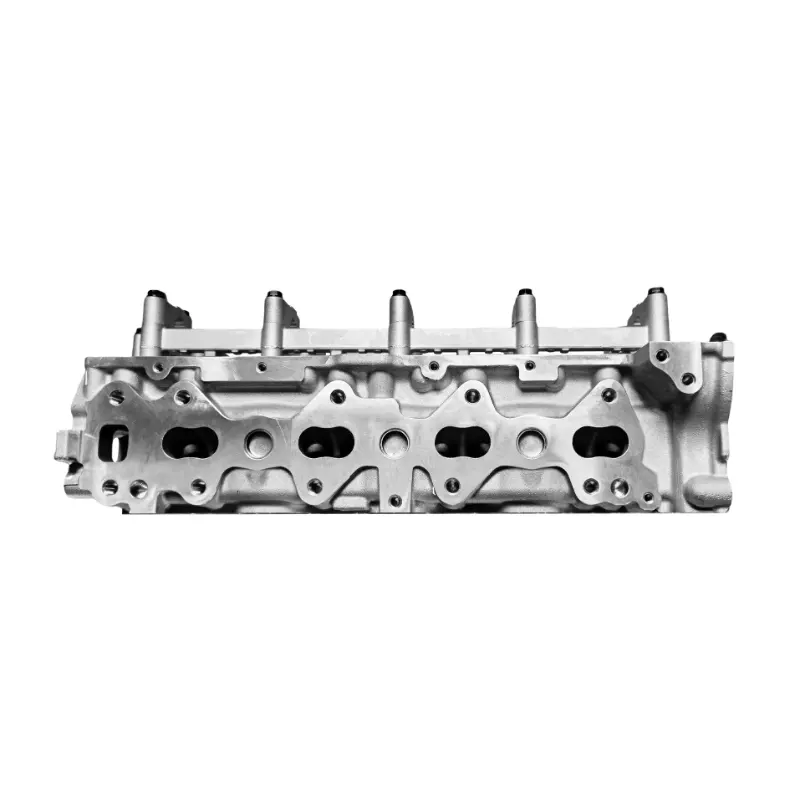

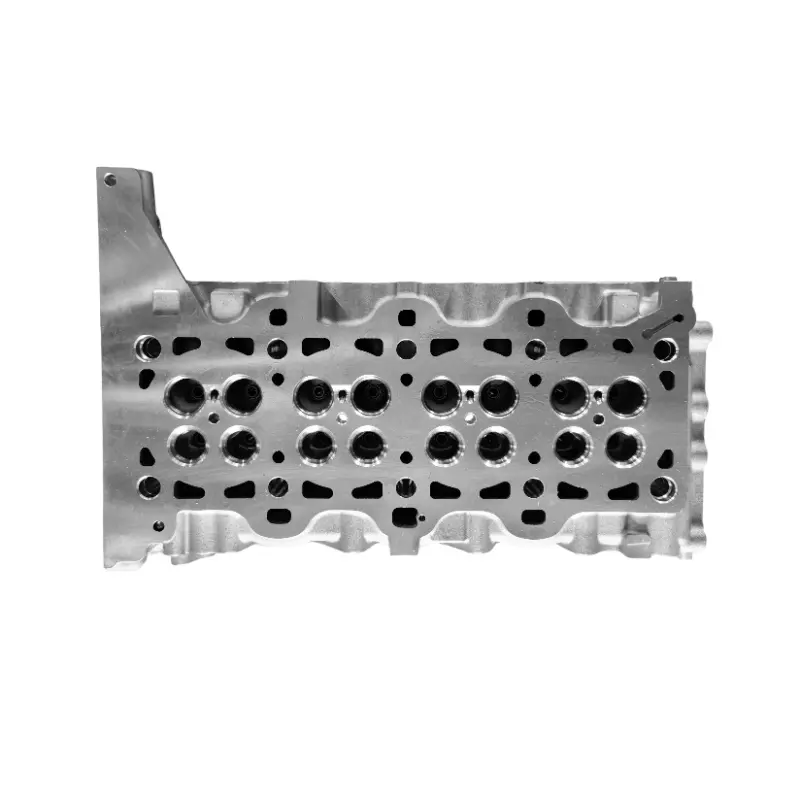

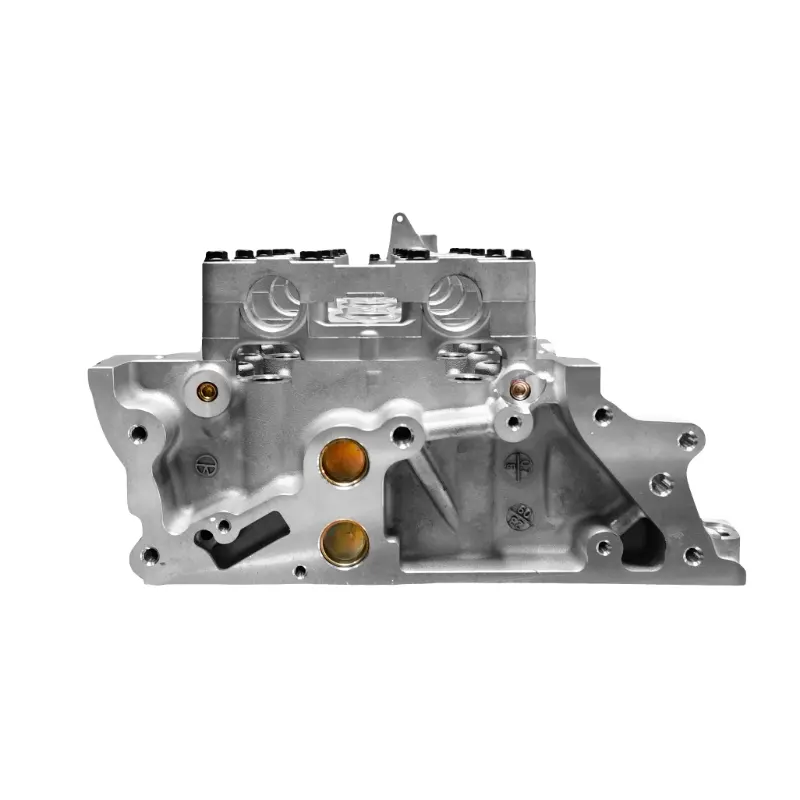

Culata para Hyundai Kia D4HA D4HB 2.0L 2.2L CRDi Motor Diésel 22100-2F000 Tucson
Introducción
Producto N.º
| ML NÚMERO. | N.º de OEM | NÚMERO DE REF. |
| MLG067 | 22100-2F000 551F5-2FU00 552F5-2FU00 |
Información del producto Culata
DOHC | 16-Valve | Common Rail Turbo Diesel | Aluminum Alloy Head
1. Descripción general del producto
El D4HA y D4HB are part of Hyundai’s R-engine series, representing 2.0L inline-4 common rail turbo diesel engines. These engines are widely used in SUVs, sedans, and vans such as the Tucson, Santa Fe, Sportage, i40, Sorento, y mucho más.
The cylinder head is made from lightweight aluminum alloy, features 16 válvulas con árboles de levas dobles en cabeza (DOHC), and is compatible with high-pressure common rail injection systems.
D4HA and D4HB share similar architecture, with minor differences in tuning, emissions setup, and turbocharger specs. The cylinder head itself is often interchangeable.
2. Especificaciones técnicas
| Especificación | Detalle |
|---|---|
| Códigos de motor | D4HA / D4HB (Hyundai R 2.0 CRDi) |
| Desplazamiento | 2.0L (1995 cc) |
| Configuración | Cuatro en línea |
| Tren de válvulas | DOHC, 16 válvulas |
| Material de la culata | Aleación de aluminio |
| Sistema de combustible | Inyección directa de riel común (CRDi) |
| Aspiración | Turboalimentado |
| Enfriamiento | refrigerado por agua |
| Turbo Type | VGT (Variable Geometry Turbocharger) |
| Normas de emisión | Euro 4–6 depending on market |
| Momento | Timing Chain or Belt (varies) |
3. Números de piezas de la culata del cilindro OEM
| Número de OEM | Descripción |
|---|---|
| 22100-2F000 | D4HA cylinder head (early version) |
| 22100-2F001 | Updated D4HA / D4HB head casting |
| 22100-2F700 | Late model cylinder head (EURO 6) |
| 22100-2F750 / 22100-2F800 | With upgraded EGR cooler / sensor ports (select markets) |
Always verify the EGR port, sensor mounting, y injector seat style before replacement.
4. Vehículos compatibles
| Marca | Modelo | Rango de años |
|---|---|---|
| Hyundai | Tucson | 2010–2020 |
| Hyundai | Santa Fe | 2010–2018 |
| Hyundai | i40 | 2011–2019 |
| Hyundai | Sonata (diesel trims) | 2011–2017 |
| Hyundai | H1 / iLoad (select trims) | 2010–2018 |
| Kia | Sportage | 2010–2021 |
| Kia | Sorento | 2010–2019 |
| Kia | Carens / Rondo | 2013–2018 |
| Kia | Optima (diesel) | 2012–2018 |
5. Opciones de producto
| Tipo | Incluye |
|---|---|
| Culata desnuda | Casting only – no internals |
| Semicompleto | Valves, springs, guides, retainers |
| Ensamblaje completo | Camshafts, valves, rockers, hydraulic lifters – pre-installed |
Pressure-tested cooling passages
Heat-resistant valve seats for diesel combustion
Compatible with OE camshaft sensors and fuel rail
Available with or without EGR ports
6. Consejos de instalación
- Usar nuevos tornillos de culata (TTY bolts recommended)
- Seguir factory torque sequence in multiple stages
- Reemplazar junta de culata with high-quality MLS type
- Inspect and clean injector seats and sealing washers
- Bleed air from coolant system and fuel lines
- Verificar valve timing y VGT turbo oil feed
7. Problemas comunes de la culata y soluciones de reparación
| Problema | Síntoma | Causa | Solución recomendada |
|---|---|---|---|
| Cabeza rota | Coolant in oil, white smoke | Sobrecalentamiento, flujo deficiente de refrigerante | Replace head, inspect cooling system |
| Paso de gases del inyector | Tictac, humo negro | Poor injector sealing | Clean seat, replace injector copper washer |
| Desgaste del asiento de la válvula | Loss of power, misfire | Long-term use, poor fuel | Valve regrind or replacement |
| Superficie deformada | Blown gasket, coolant leak | Calentamiento excesivo | Machine head flat, use new gasket |
| Rayado del árbol de levas | Noise, power loss | Low oil pressure or dirty oil | Replace camshaft and cam journals if worn |
8. Mercados de exportación y servicios
- Europa: Poland, Turkey, Romania, UK
- AsiaFilipinas, Tailandia, Indonesia, Pakistán
- Oriente Medio: UAE, Iraq, Jordan
- África: Egypt, Kenya, South Africa
- América Latina:Chile, Perú, Bolivia
- Australia / Nueva Zelanda: Hyundai/Kia diesel SUV market
